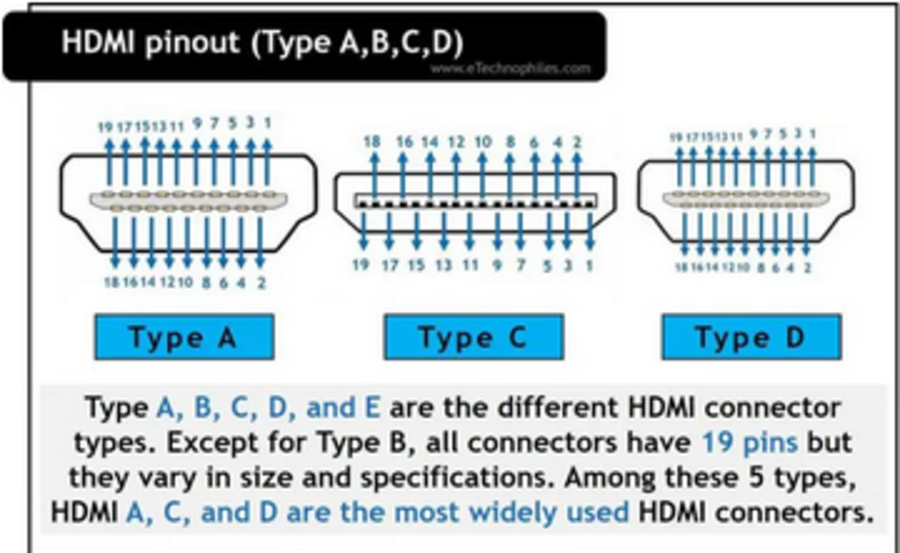

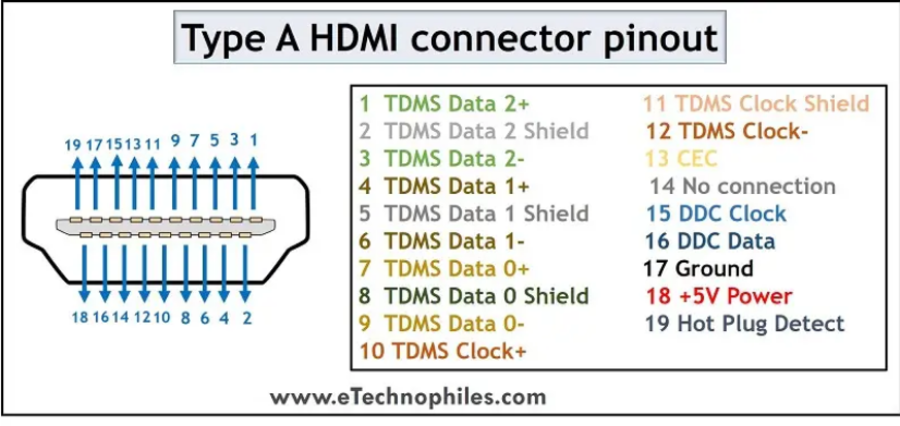

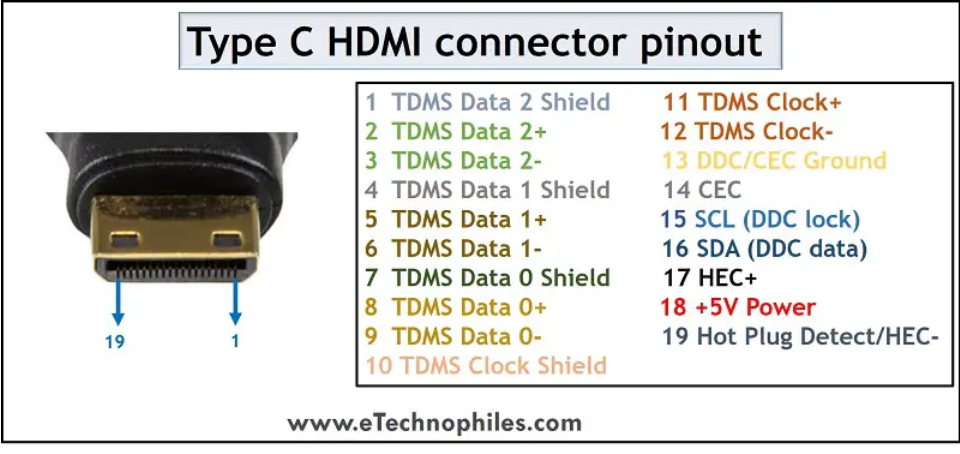

Raspored i Funkcija pinova

Izvor:
https://www.etechnophiles.com/hdmi-connector-pinout/

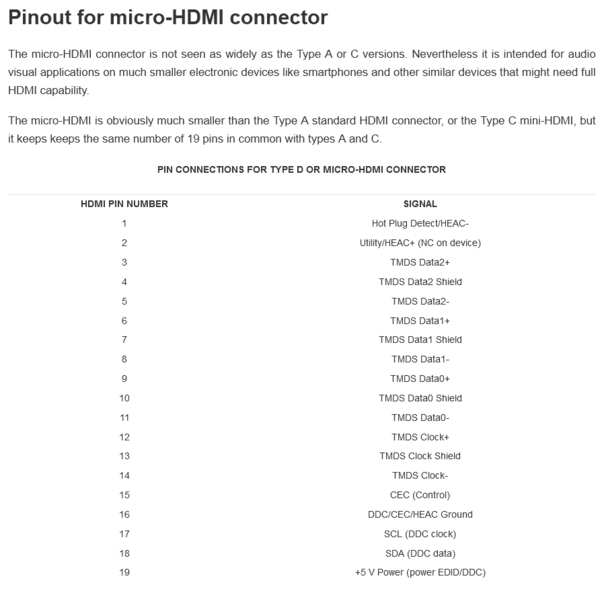

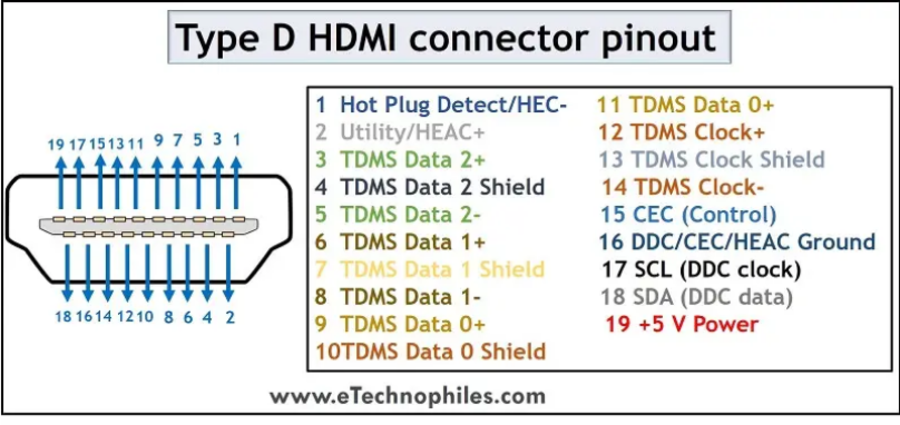

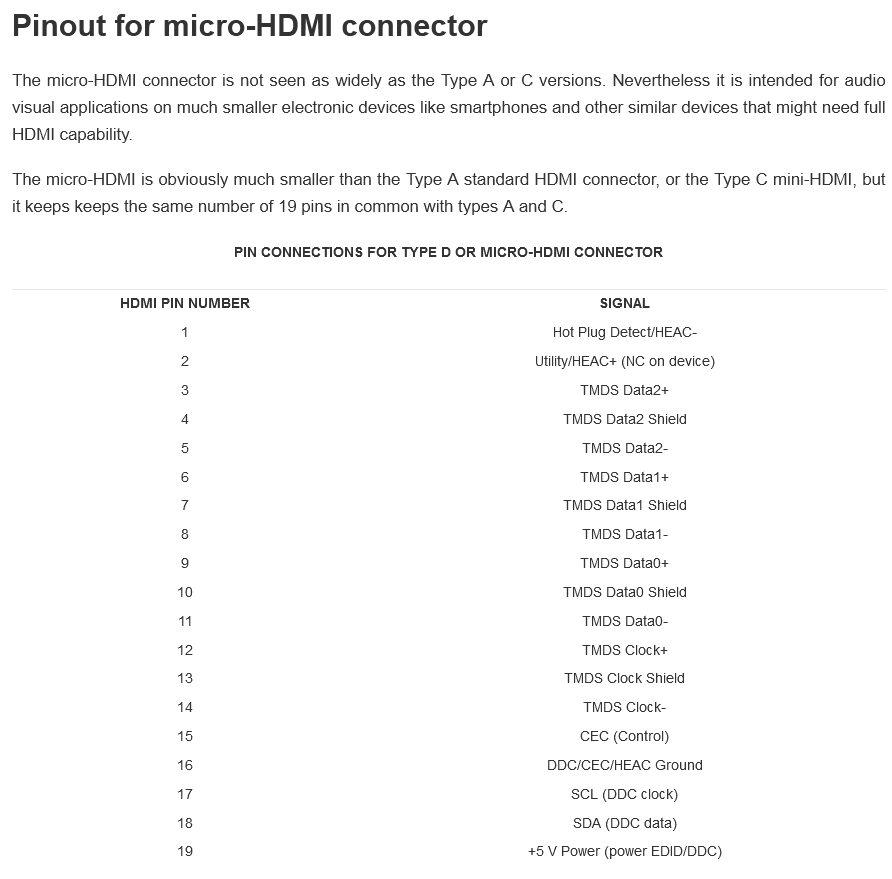

Raspored micro HDMI:



Kabl HDMI na microHDMI:



_{[Ovu poruku je menjao Living Light dana 21.11.2024. u 06:26 GMT+1]}

Provera ispravnoti HDMI Kablova:







https://www.youtube.com/watch?v=bSalguD5-eY

https://www.youtube.com/shorts/i6Njjv_Nl2U

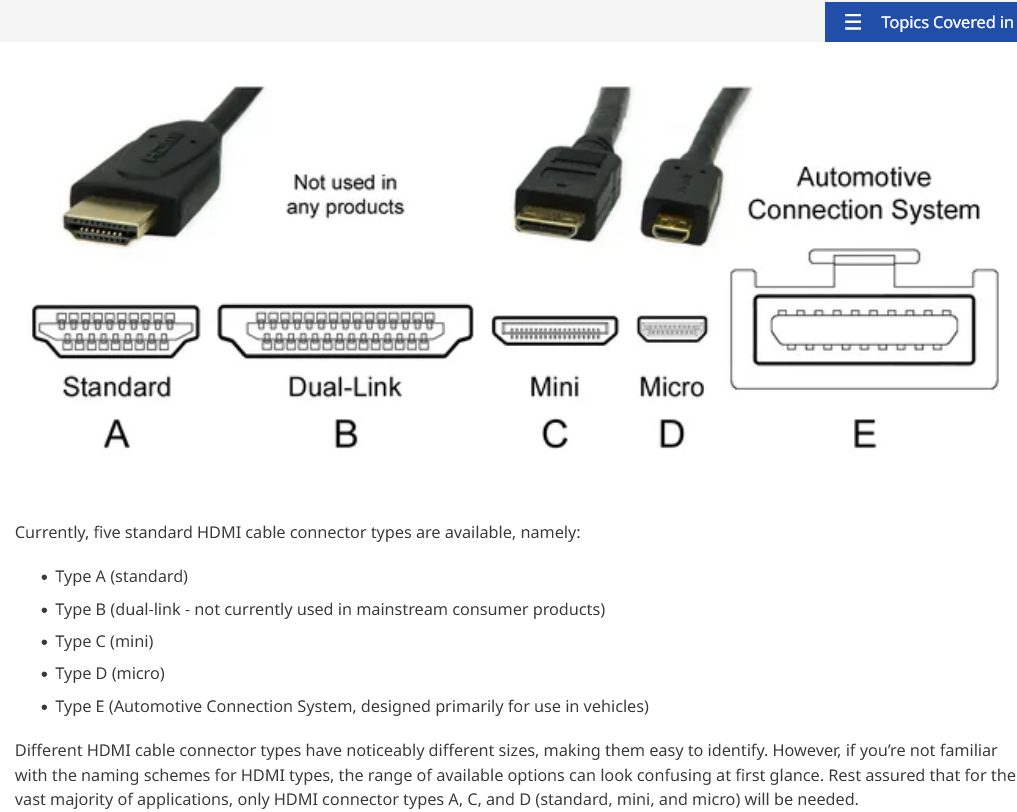

"The majority of HDMI connectors in use today are the Type A (standard),
Type C (mini) and Type D (micro) shown below.
HDMI Type B (dual link) was developed for very high-resolution displays but was never used.
Also not shown is the HDMI Type E connector which is intended for automotive and industrial applications."

"Većina HDMI konektora koji se danas koriste su Tip A (standardni),
Tip C (mini) i Tip D (mikro) prikazani ispod.
HDMI tip B (dual link) je razvijen za ekrane veoma visoke rezolucije, ali nikada nije korišćen.
Takođe nije prikazan HDMI konektor tipa E koji je namenjen za automobilske i industrijske primene."
------------------------------------------------




Izvor:
Source:

https://uk.rs-online.com/web/c...d-advice/hdmi-connectors-guide
